SOQCS Example 1: Introduction to using SOQCS

Elementary example of SOQCS for a simple circuit with only one beamsplitter.

Structure:

- Create a circuit.
- Build the circuit.
- Create a simulator to run it.
- Run the simulation.
- Print the output probabilities.

Import and configure library

import soqcs

Managing photons

Create and build a circuit, including populating the channels with photons.

# Create circuit
example = soqcs.qodev(2,2);

# Build circuit
example.empty_channel(0)
example.add_photons(2,1)
example.separator()
example.beamsplitter(0,1,45.0,0.0)
example.separator()
example.detector(0)
example.detector(1)

Plot the circuit.

example.show(depth=7,sizexy=70)

Create a simulator and run the simulation.

simulator=soqcs.simulator()
outcome=simulator.run(example)

Print the outcome.

outcome.prnt_bins()

 0 :  | 2, 0 >: 0.25
 1 :  | 1, 1 >: 0.5
 2 :  | 0, 2 >: 0.25

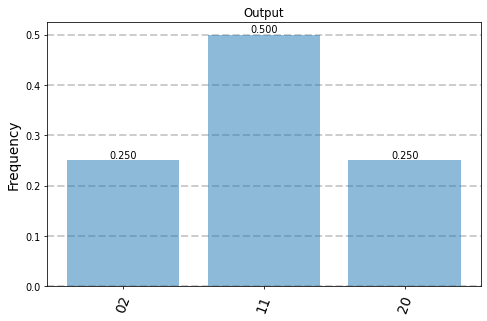

Plot the outcome.

outcome.show(dpi=70)

Managing states

We build the circuit again but in this case we use the most basic qocircuit class.

# Create a circuit
example = soqcs.qocircuit(2);

# Build circuit
example.beamsplitter(0,1,45.0,0.0)
example.detector(0)
example.detector(1)

In contrast to the previous class qodev, photons can not be declared directly in qocircuit but the initial state has to be initialized separately.

# Create input state
inputst = soqcs.state(example.num_levels(),10)

# Initialize input state
term=[[0,1], # Channels
      [0,2]] # Occupations
inputst.add_term(1.0,term,example)

After simulation the output state is obtained. Note that the command to run the simulation is different than in the previous case.

# Create simulator
simulator=soqcs.simulator()

# Run the simulation
outputst=simulator.run_st(inputst,example)

Print the output state.

outputst.prnt_state()

(0.5,0) *  | 2, 0 > + (-0.7071,0) *  | 1, 1 > + (0.5,0) *  | 0, 2 >
